Vibrating Screen Sorting Machines Stainless steel linear screening machine is suitable for screening and grading of various dry powder, block or granular materials with particle size of 0.074-5mm, water content of less than 7% and no viscosity. Widely used in food processing, food selection, hardware abrasives, chemical classification and other industries processing and pipeline classification cooling operations. The maximum feeding particle size is not more than 10mm. According to the needs of customers to customize a layer, two layers, three layers, four layers, five layers, six layers, but also according to the screening needs, the production material is ordinary steel, stainless steel and other materials, can be designed as ordinary carbon steel, contact material part of stainless steel, stainless steel material.
1): The machine uses a special high-performance energy consumption vertical motor, to provide you with excitation power, you can work long time without interruption.
2): the body and the material part of the contact with all stainless steel, sanitary, sterile corrosion resistance, wear resistance outstanding.
3): sieve Large granular material . Filter efficiency is extremely high, compact design and durable, can be used, small size, do not take up space, easy to move.
4): Screen is the use of the industry's cutting-edge technology, greatly improving the effective area of the screen, with high screening accuracy, so that production has been further improved.
5): the use of vertical vibration motor, no mechanical transmission, so that the shock force transmission process without loss, effective transfer to the screen surface, change the network faster and more convenient, just a few seconds.
6): Wide range of applications, thermosetting powder coating, plastic powder, epoxy powder, food, beverage, pharmaceutical, chemical, plastics, abrasive, ceramic, paper, nanomaterials and other industries for grading, screening, mixing, mixing, , Solid-liquid separation of the ideal equipment. Applicable industry: Food industry; chemical industry; metal; laboratory; metallurgical mining; pharmaceutical industry; abrasive metallurgical industry; ceramic purple sand industry.

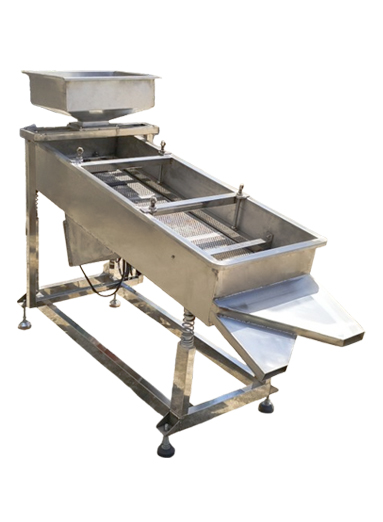

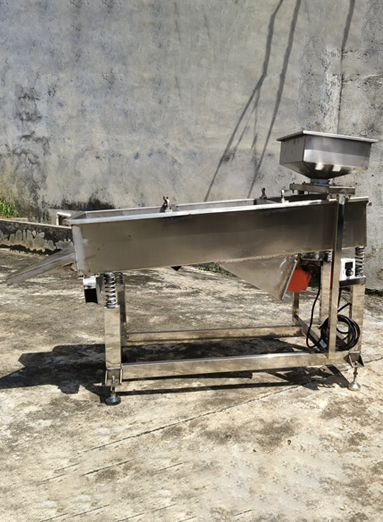

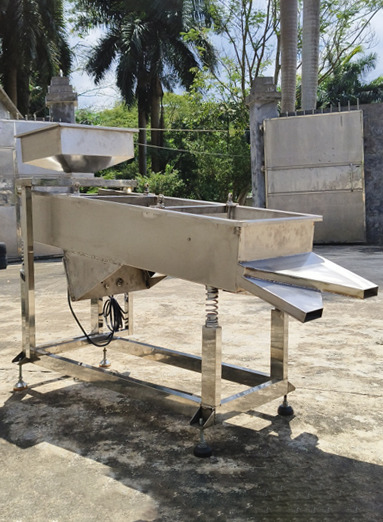

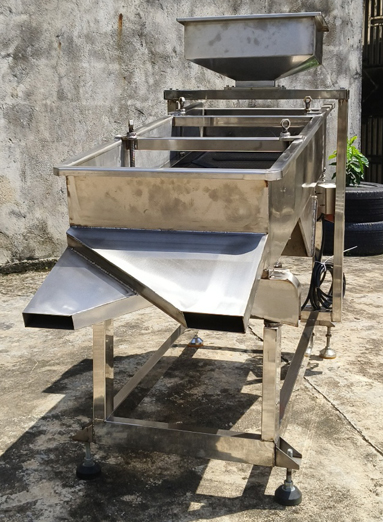

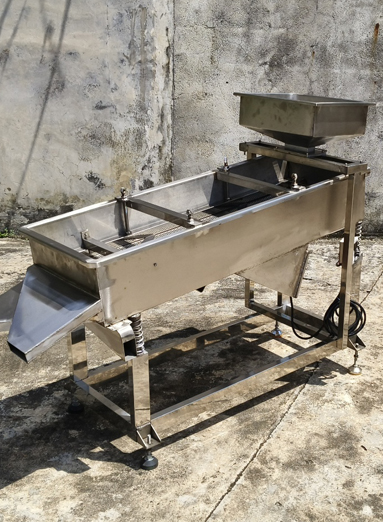

Name：Coffee Bean Grader
. Voltage:220V
. Power:0.13kw
. Output: 200kg/h .
. Machine size: 1530*590*1130mm
. Screen size: 1200*420mm
. Number of sieve mesh: 2 pcs.
. Mesh size: 12# and 16# (international standard) .
. Sieve mesh aperture can be customized free of charge upon request
